Introduction

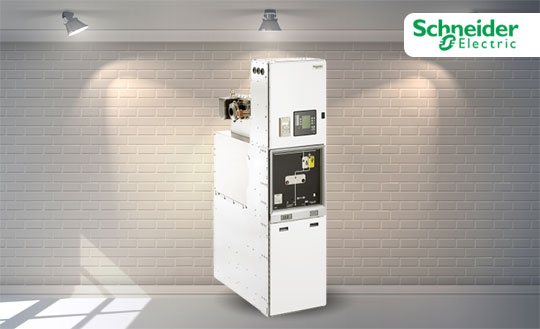

Schneider Electric India’s carefully curated Gas-Insulated Breaker Switchgear (GHA) are the perfect option for different utilities and industries including mining, marine, and oil & gas. In these industries, safety and periodic maintenance are a prominent challenge, which is why it is never too late to evaluate whether it is a good time to upgrade your switchgear.
Inquiry Now
Features
- Ratings up to 40.5 kV, 2500A, 40kA-3s
- Single and double busbar
- Designed to be installed next to a wall
- Intelligent Gas Density Information System (IDIS)
- Inner and outer cone cable connection
- Current and Voltage transformer on busbar and cable side
- GHA now available as an 1- and-2 phase solution for Railway application.
Benefits
- Ready to connect
- No gas handling during erection, extension work and panel replacement
- Natural cooling
- Innovative fault-tolerant busbar link “B-link”
- Intuitive operator guidance
- Environmentally compatible, easy to recycle, improved footprint.
Documents
| Sr | Catalogue | Format | Download |
|---|---|---|---|
| 1 | System Configurator | Download | |
| 2 | Assembly Instruction | Download | |
| 3 | Operating & Maintenance Instruction | ZIP | Download |
| 4 | Sales Catalog | ZIP | Download |
| 5 | IVIS | ZIP | Download |
| 6 | IDIS | Download | |
| 7 | Information of SF6 | Download | |
| 8 | GHA Camera System | Download | |
| 9 | Swgr Extension & replacement | Download | |
| 10 | GHA Railway Application | Download | |
| 11 | General | Download |
