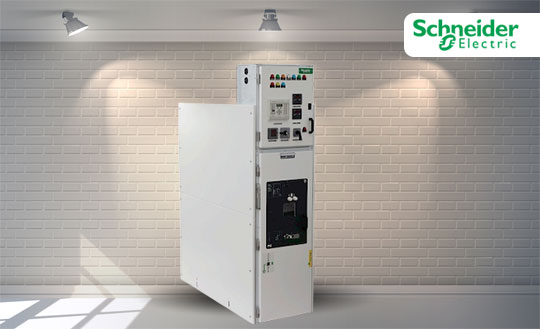

PIX Roll on Floor
Introduction
Air Insulated Switchgear Up to 17.5 kV with floor rolling vacuum circuit breaker
PIX with a roll on floor circuit breaker design provides easy rack-in/rack-out operation without the need for a separate trolley. It is an extension of the standard PIX range and delivers performances up to 17.5 kV/31.5 kA/2500 A. It is equipped with a Vacuum Circuit Breaker and has other functional trolleys like the earthing truck, the metering truck and the link truck.
Inquiry Now
Features
- Up to 17.5kV, 31.5 kA and 2500 A
- Single busbar design
- Highest level of service continuity LSC 2B-PM
- Internal Arc Classification (IAC) AFLR 31.5kA 1s according to IEC62271-200
- E2, M2 and C2 (cable charging & single capacitor bank) class circuit breaker
- Up to 2 sets of block CTs and 6 cables/phase
- Integrated earth switch with making capacity
Benefits
- High performance
- Service continuity
- Space saving
- Safety
- Low cost of ownership
- Reduced installation time
- Intuitive guidance
- Smart switchgear management
