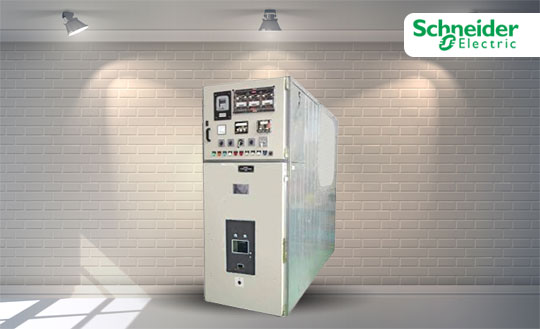

PIX 36 Air-Insulated Switchgear 36 kV
Introduction
This version has been optimized for the primary distribution range up to 36 kV/31.5 kA/2500A.
PIX -36 is equipped with Vacuum Circuit Breaker The fully metal clad design makes this product robust for all applications. It offers space saving and complies strictly with the latest IEC standards. Safety is the number one priority.
Features
PIX 36 is a universal and international solution for withdrawable air insulated switchgear. It can be used for utility, industry and infrastructure applications. It is compact in design and uses both vacuum and SF6 circuit breakers.
- Ratings up to 36 kV / 2000 A / 25 kA
- Equipped with the new HVX embedded pole vacuum circuit breaker, or the type FP SF6 circuit breaker.
- Isolated busbar can be extended on both sides
- Rear cable access
- Floor rolling truck
- Current and voltage transformers on busbar or cable sides
Benefits
- Reduced width of 1000 mm providing space and civil cost saving
- Fully interlocked and comprehensive operation from the front
- Environmentally compatible, easy to recycle
