Stay ahead of the current!
Motor Current Signature Analysis gives early, reliable warnings of electrical and mechanical issues—without opening or stopping your motor.
The most expensive faults are the ones you never saw
Every failure leaves unanswered questions. Why again? Why now? Without data, you’re left guessing—and repeating mistakes.
Your motor has things to say. MCSA hears it
Motor Current Signature Analysis (MCSA) turns ordinary current data into extraordinary foresight—predicting faults before they stop your world.

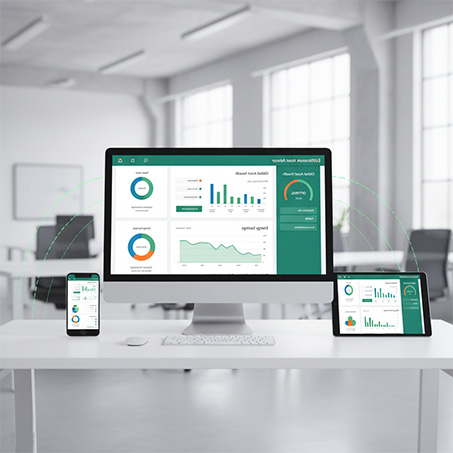

Run longer, safer, smarter—without second guesses.
MCSA replaces instinct with hard data—so you predict, plan, and prevent instead of reacting in the dark.
Up to 4 months early warning
of failures before they escalate.
>90% failures detected
with higher reliability than other technologies
30% reduced ownership cost
over 10 years
Average payback in < 1 year
from prevented breakdowns & smarter maintenance
Detect both electrical & mechanical faults
from winding shorts to bearing wear.
Cloud-based expert analysis
with real-time dashboards and alerts.
Safe for explosive zones (ATEX)
—no direct motor access required.
Monitor multiple motors
at once
The closest thing to X-ray vision for motors
From electrical anomalies to belt failures, MCSA delivers a 360° view of motor health.
Continuous monitoring · 24/7 · Remote alerts
How Motor Current Signature Analysis works
Sensors in the Motor Control Center (MCC) capture current and voltage data without touching the motor. The system reads patterns in these signals, spotting deviations linked to mechanical or electrical faults. Data is securely sent to the cloud, analyzed with machine learning, and reviewed by Schneider experts—delivering clear alerts and reports.
Cloud Health Engine
Advanced algorithms + machine learning analyze motor current “signatures,” compare against global fleet data, and detect faults months before failure.
Sensors in MCC
Non-intrusive CTs & voltage taps capture current and voltage safely.
Data Acquisition Device
Converts raw electrical signals into analyzable digital patterns.
Secure Connectivity
Encrypted transfer via 4G/Ethernet/Wi-Fi to the cloud.
Cloud Analytics
Detects both electrical + mechanical anomalies, forecasts failures.
Actionable Insights
Dashboards, alarms, and expert recommendations for timely interventions.

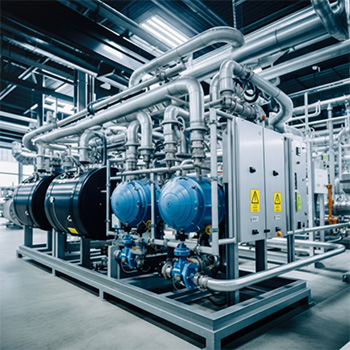

The real-life power of MCSA
Critical assets in energy, manufacturing, and infrastructure see the biggest gains with predictive motor monitoring.
How installation works
Installed in the control center, never on the motor—fast, safe, and easy to expand across fleets.
Mount current transformers and voltage taps in MCC.
Connect to a data acquisition device.
Link gateway to Schneider cloud.
Begin baseline learning phase.
Access dashboard, reports, and expert alerts.
Turn blind spots into advantages
Get early insights, expert-backed monitoring, and lower costs. Secure your operations with MCSA before small faults become big shutdowns.
