Power built for extremes
From steel plants to substations, HWX handles what others can’t—12 kV, 5000 A, 50 kA of pure reliability, safety, and strength.
Explore MoreMeet HWX. Toughness engineered in steel
HWX is a medium-voltage air-insulated vacuum switchgear for power distribution up to 12 kV and 5000 A. Designed for process plants, utilities, and power stations, it combines heavy-duty performance, global safety standards, and rugged modularity—purpose-built for Indian and international industries.

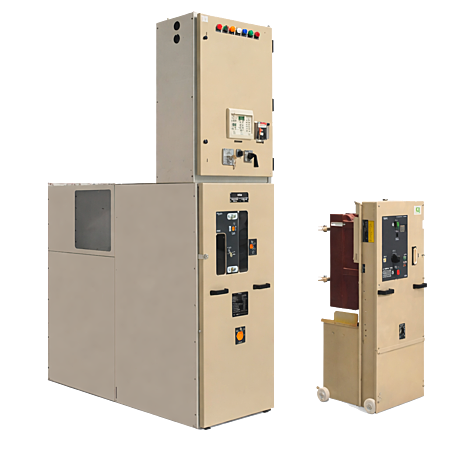

Meet EasySet MV. Designed for ease, built for endurance
EasySet MV is a medium-voltage air-insulated switchgear system rated up to 12 kV, 26.3 kA, and 2000 A. Powered by EasyPact EXE breakers and advanced monitoring, it delivers safe, flexible, and ergonomic power distribution across utilities, industry, infrastructure, and renewables.
Why HWX outperforms under pressure
Every panel, partition, and interlock is engineered to withstand the harshest electrical, thermal, and mechanical stress.
Operator protection first
AFLR-PM arc classification up to 40 kA—tested, verified, and trusted.
Built like a fortress
Rigid steel construction with pressure relief flaps and arc ducts routes faults safely away.
Continuous power
LSC-2B compartments maintain live continuity during circuit breaker maintenance.
Flexible configuration
Single or double busbar options for seamless changeover and bidirectional flow.
High-capacity cooling
Natural cooling up to 3150 A; forced air for 5000 A continuous load.
Quick, safe access
Front, lateral, and rear entry with removable partitions and IR inspection windows.
Seismic-ready
Certified for Zone V operation—stable even under vibration or impact.

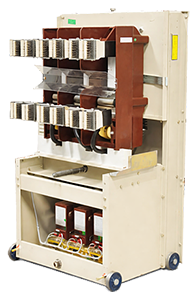

Strength, measured in numbers
Built to IEC 62271 series and ISO standards—precision-engineered for endurance, protection, and peak performance.
Where HWX earns its name
Engineered for demanding industrial and utility environments where reliability is non-negotiable.
Made for heavy industry. Trusted everywhere.
From foundries to grids, HWX brings Schneider engineering to sectors that run hot, hard, and around the clock.

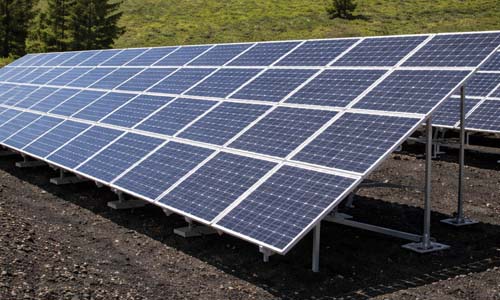

Power Utilities & Generation
Related areas of operation
HWX integrates seamlessly into adjacent high-stress power areas—supporting generation, transmission, heavy industrial loads, and critical infrastructure where electrical, thermal, and mechanical endurance are essential.
Services
Spares
Switchyard Complete Testing, Commissioning & Maintenance
Pix 36

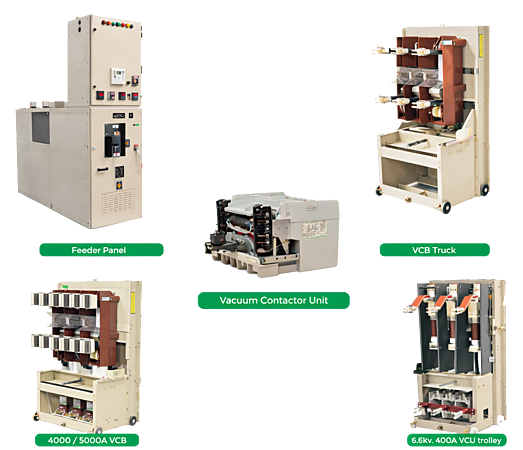

Tried. Tested. Trusted components.
From breakers to relays, every HWX spare is built to the same endurance standard as the switchgear itself.
- VG Series Vacuum Interrupters (up to 63 kA)
- MiCOM / Sepam / Vamp Relays for protection and arc-flash mitigation
- Current / Voltage Transformers, Earthing Trucks, Link Trucks
- Arc Deflectors, Pressure Relief Assemblies, Cable Termination
- EcoStruxure digital support and documentation Accessories
Products built to endure with HWX
Purpose-built components designed to operate alongside HWX—supporting protection, control, and fault management while meeting the same rigorous IEC standards and endurance requirements.
Built to handle your heaviest load
Talk to our experts to configure an HWX setup that fits your plant, protection needs, and performance goals.
