Power that stands its ground
Engineered for 36 kV performance, PIX 36 brings unshakable reliability, safety, and intelligence to the world’s toughest electrical networks.
Explore MoreWhen power systems face the unexpected
High-voltage environments leave no room for error. Conventional gear struggles under pressure—PIX 36 is built to stay steady when everything else wavers.

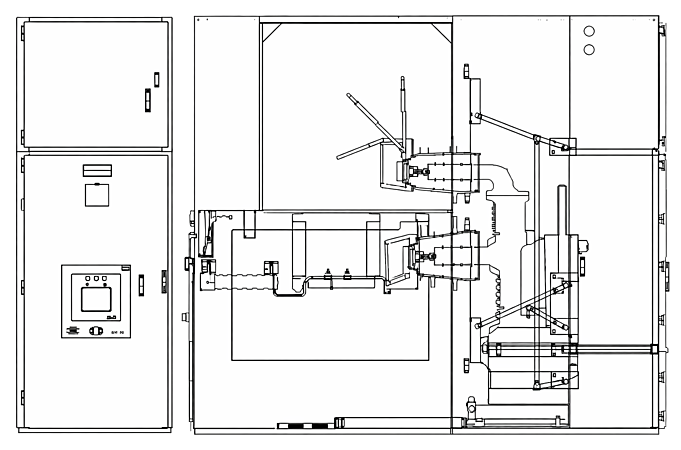

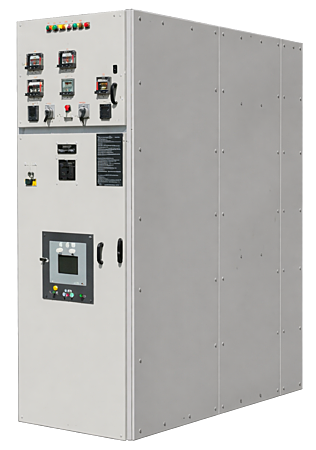

Meet PIX 36. Built for the big leagues
PIX 36 is a medium-voltage, air-insulated switchgear with withdrawable vacuum circuit breaker technology, designed for applications up to 36 kV. Its modular architecture and front-access operation make it ideal for utilities, infrastructure, heavy industry, and renewable grids that can’t afford compromise.
Why industries trust PIX 36
From safety and scalability to smart control, PIX 36 delivers reliability that keeps high-demand systems running without pause.
Flexible configuration
Multiple functional units—feeders, incomers, metering, bus sectioning—adapt to your power architecture.
Service continuity
Earthed metallic partitions with LSC2B design keep compartments energized for uninterrupted service.
Front-door safety
Operate, monitor, and test from the front with doors closed—safety without slowing you down.
Arc-fault protection
AFLR-class internal arc design (31.5 kA / 1 s) and interlocks protect people and equipment.
Digital by design
IoT-ready relays, EcoStruxure connectivity, and wireless sensors enable predictive maintenance and real-time insights.
Low maintenance
10,000 mechanical operations; routine checks every 5–10 years keep it running like new.
Built to last
ISO 9001 and 14001 certified manufacturing with recyclable materials for sustainable performance.

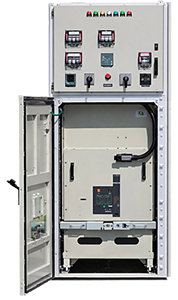

Engineered to the best standards
Built to IEC 62271 and ISO 9001 standards for reliability, endurance, and operational safety.
Where PIX 36 performs best
From substations to heavy industry, PIX 36 is built for high-demand environments that can’t compromise on uptime.
Powering progress across every front
PIX 36 serves the sectors that move economies—from heavy industry to clean energy.

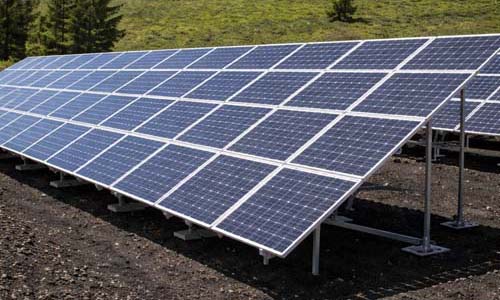

Energy & Utilities
Where PIX 36 connects across your power network
Beyond the switchgear lineup, PIX 36 plays a key role across interconnected power areas—linking substations, industrial loads, digital monitoring, and energy infrastructure into one reliable ecosystem.
Services
Digital Offerings
Spares
Switchyard Complete Testing, Commissioning & Maintenance
Smart eyes on your switchgear
Wireless, battery-free thermal sensors that detect heat risks before they become breakdowns — for safer, smarter switchgear.
Explore More
Pix 36
Parts that protect your uptime
Genuine spares and digital components built to keep PIX 36 performing at peak efficiency.
- Easergy / SEPAM / MiCOM Relays for advanced protection
- Vacuum Circuit Breakers rated for 10,000 operations
- CTs / PTs for precision measurement and protection
- Arc-flash detection systems with selective tripping
- EcoStruxure-ready documentation and digital support
Built for 36 kV performance
These related products are purpose-built to operate alongside PIX 36, supporting protection, monitoring, and operational continuity—while meeting the same rigorous IEC and endurance standards.
Let’s raise your power standard
Consult our engineers today and find the PIX 36 configuration that fits your voltage, space, and safety needs.
